Optical Margin

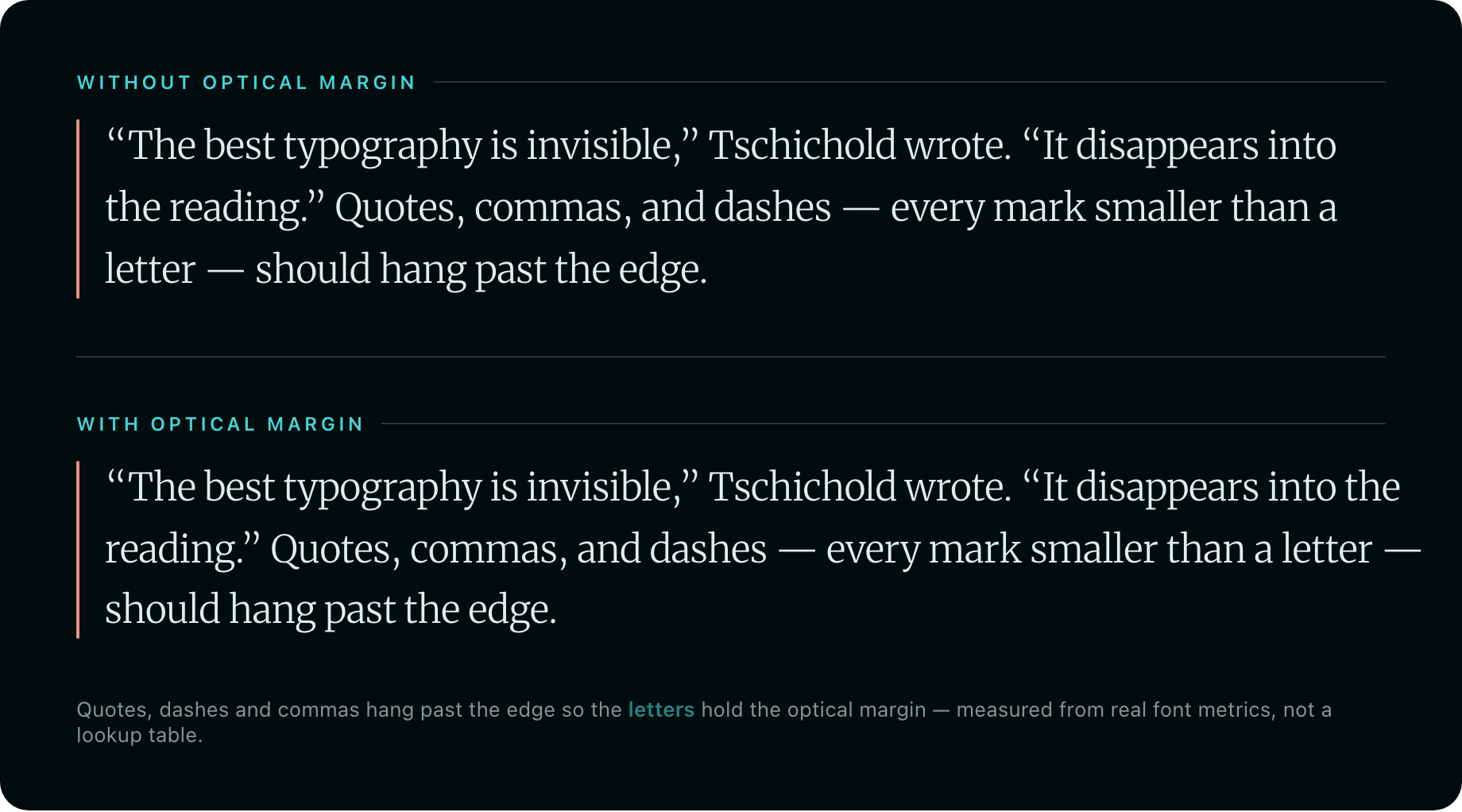

Hanging punctuation nudges marks smaller than a letter — opening quotes, commas, dashes, periods — slightly past the edge of a text block, so the letters, not the punctuation, hold a clean optical margin. It's what fine book typesetting does to make a column edge look straight.

CSS hanging-punctuation is Safari-only, uses hard-coded character tables, and gives no control over hang amount, threshold, or which characters hang. Optical Margin measures each punctuation character's actual hang amount from Canvas font metrics — not a lookup table — and applies it as a negative margin. Works in every browser, with every font.

opticalmargin.com · npm · GitHub

TypeScript · Zero dependencies · Canvas measurement · Cross-browser · React + Vanilla JS

---

Install

npm install @liiift-studio/opticalmargin

---

Usage

Next.js App Router: this library uses browser APIs. Add "use client" to any component file that imports from it.

React component

import { OpticalMarginText } from '@liiift-studio/opticalmargin'

<OpticalMarginText>
  "Typography is the craft of endowing human language with a durable visual form."
</OpticalMarginText>

Both hangStart and hangEnd default to true, so no props are required for standard use.

React hook

import { useOpticalMargin } from '@liiift-studio/opticalmargin'

// The options object is required; pass {} for defaults.
function Quote({ children }: { children: React.ReactNode }) {
  const ref = useOpticalMargin({})
  return <blockquote ref={ref}>{children}</blockquote>
}

The hook re-runs automatically on resize via ResizeObserver (width changes only — vertical-only resizes are skipped) and after fonts load via document.fonts.ready.

Inline markup is preserved — italics, bold, and links survive the per-line wrapping:

<OpticalMarginText as="blockquote">
  “Typography is the craft of endowing <em>human language</em> with a
  durable <strong>visual form</strong>.”
</OpticalMarginText>

Vanilla JS

import { applyOpticalMargin, removeOpticalMargin, getCleanHTML } from '@liiift-studio/opticalmargin'

const el = document.querySelector('blockquote')
const original = getCleanHTML(el)
const opts = { hangStart: true, hangEnd: true }

function run() {
  applyOpticalMargin(el, original, opts)
}

run()
document.fonts.ready.then(run)

const ro = new ResizeObserver(() => run())
ro.observe(el)

// Later — disconnect and restore original markup:
// ro.disconnect()
// removeOpticalMargin(el, original)

TypeScript

import type { OpticalMarginOptions } from '@liiift-studio/opticalmargin'

const opts: OpticalMarginOptions = { threshold: 1, maxHangRatio: 0.8 }

---

Options

Option	Default	Description
hangStart	true	Hang opening punctuation at line starts
hangEnd	true	Hang closing punctuation and sentence-end marks at line ends
threshold	0.5	Minimum effective hang amount in px before applying (compared after hangFractions multiplication). Prevents near-zero corrections on characters that barely protrude
maxHangRatio	0.9	Max proportion of the character's advance width to hang (0–1). Clamped to [0,1]. Caps extreme hangs on very wide punctuation
hangFractions	see below	Per-character hang fraction overrides. Keys are single characters; values are fractions (0–1) of the measured hang to apply (0 = no hang, 1 = full hang). You can pass a sparse object — unspecified characters fall back to built-in defaults. Default fractions: hyphens/dashes (- – —) 1.0; quotes (" ' « ») and . ! ? … ) ] 0.8; opening parens/brackets (( [) and , ; : 0.6

OpticalMarginText component only:

Prop	Default	Description
as	'p'	HTML element to render, e.g. 'blockquote', 'h1'

OpticalMarginText also forwards all standard HTML attributes (aria-label, id, role, className, style, etc.) to the root element.

---

How it works

Canvas measureText returns both width (advance width) and actualBoundingBoxLeft / actualBoundingBoxRight (visual bounds). The difference between advance width and visual bounds is the optical overhang — how far a character's ink sits inside its typographic cell. That value, clamped by maxHangRatio and threshold, is applied as margin-inline-start (start hang) or margin-inline-end (end hang) on each line span. Using logical properties means the direction is correct in both LTR and RTL contexts. The algorithm re-runs on resize and after fonts finish loading (document.fonts.ready).

Start character set: " ' " ' « ( [

End character set: . , ; : ! ? " ' " ' » - – — … ) ]

Falls back to zero hang (no margin applied) in environments without Canvas support (e.g. SSR).

Line break safety: Line breaks are locked to the browser's natural layout. Word breaks never change — the negative margins only affect the optical edge position, not line content or width.

Browser support: Works in every modern browser. The hang amounts come from Canvas TextMetrics.actualBoundingBoxLeft / actualBoundingBoxRight, supported in Chrome/Edge 77+, Safari 11.1+, and Firefox 74+. If those metrics are unavailable (very old engines, or SSR with no Canvas), the measured hang is 0 and text renders flush — the same as not applying the effect. There is no layout breakage on unsupported platforms, so it is safe to ship unconditionally.

---

Accessibility

Optical Margin is a presentation-only transform — the injected markup is hidden from assistive technology and never alters the readable text:

• Injected word and line wrappers carry role="presentation", so screen readers traverse the text as a single uninterrupted flow.
• Injected line-break elements (<br data-om>) are aria-hidden="true".
• On OpticalMarginText, aria-label and all other HTML attributes pass through to the root element unchanged.

Copy/paste caveat: because the effect rebuilds the visual lines with real <br> elements, text copied from a processed element includes hard line breaks matching the on-screen wrap, rather than reflowing as one paragraph. If a verbatim, unbroken copy is important (e.g. quotable legal text), call removeOpticalMargin(el, original) before exposing the text for copy, or keep an off-screen flush copy as the canonical source.

---

API reference

getCleanHTML(el: HTMLElement): string

Returns the element's innerHTML with all optical-margin injected markup (om-word spans, om-line spans, <br data-om> separators) stripped. Safe to call multiple times — idempotent.

Use this to capture the original HTML snapshot before the first applyOpticalMargin call. The snapshot must be passed as the second argument to both applyOpticalMargin and removeOpticalMargin every time they are called.

const original = getCleanHTML(el)  // capture once, before any apply

function run() {
  applyOpticalMargin(el, original, opts)
}

// Later:
removeOpticalMargin(el, original)  // same snapshot

Important: Always capture the snapshot from the element's initial state (or via getCleanHTML on an already-applied element). Never pass el.innerHTML directly after applyOpticalMargin has run — the snapshot will include injected markup and the algorithm will double-wrap on the next call.

---

Dev notes

next in root devDependencies

package.json at the repo root lists next as a devDependency. This is a Vercel detection workaround — not a real dependency of the npm package. Vercel's build system inspects the root package.json to detect the framework; without next present it falls back to a static build and skips the Next.js pipeline, breaking the /site subdirectory deploy.

The package itself has zero runtime dependencies. Do not remove this entry.

---

Future improvements

• Hanging numerals — detect and hang numerals (1, 7) that protrude into the margin at display sizes
• Configurable character set — expose a hangChars option to override which characters are considered candidates, beyond the built-in punctuation list
• Per-side max hang — separate maxHangStart / maxHangEnd ratios for asymmetric control
• RTL auto-detection — automatically swap start/end hang sides based on the element's computed direction style
• Intersection Observer — skip measurement for off-screen elements and re-run when they enter the viewport

---

See CHANGELOG for version history.
