magnetType

npm minzipped size License: MIT part of liiift type-tools

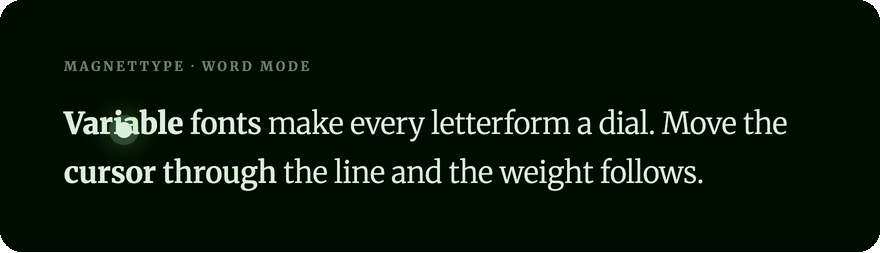

Type that responds to your cursor. As the cursor sweeps across the text, each word — or each character — pulls toward a heavier weight, then settles back as it passes. CSS font-variation-settings applies a single value to the whole element, with no native way to drive axis values per word from cursor proximity, to selectively widen visually confusable characters for legibility, or to vary weight per-character across a block element. magnetType adds all three.

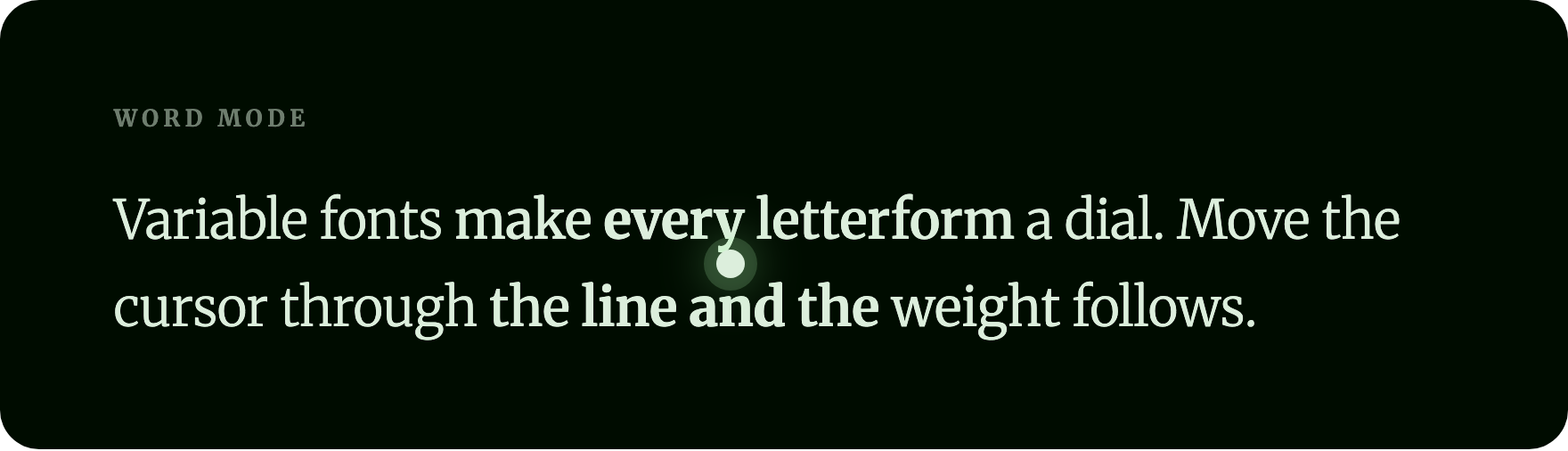

magnetType word mode: the words nearest the cursor swell toward a bold weight, fading back to light at the edges

Try the live demo at magnettype.com → · npm · GitHub

TypeScript · Zero dependencies (~6 kB gzipped) · React + Vanilla JS


Install

npm install @liiift-studio/magnettype

Variable font required: magnetType sets font-variation-settings per word or per character. The target font must support the axes you specify (e.g. a font with a wght axis for weight-based effects, or a wdth axis for legibility mode). The effect is invisible with non-variable fonts.

Axis jargon, decoded: variable fonts expose adjustable axes, each a four-letter tag. wght is weight (boldness), wdth is width, opsz is optical size. An axis range like [300, 700] means "interpolate from 300 (light) up to 700 (bold)" as the cursor approaches. magnetType drives these axes live; CSS can only set them once.

Compatibility: ~6 kB gzipped, zero runtime dependencies. React 17+ is an optional peer dependency — the core algorithm and vanilla-JS API run with no framework. Requires a browser that supports variable fonts and font-variation-settings (all evergreen browsers; Chrome/Edge 62+, Firefox 62+, Safari 11+). On touch devices with no cursor, field and character modes have no pointer to track; legibility mode applies its boost statically.


Complete example (copy-paste, runs as-is)

The examples below assume a loaded variable font with a wght axis. Here is a full setup — load the font, point font-family at it, then wrap your text:

import { MagnetTypeText } from '@liiift-studio/magnettype'

// 1. Load a variable font (any font with a `wght` axis works — Inter, Recursive,
//    Roboto Flex, Source Serif…). Put this in your global CSS:
//
//    @font-face {
//      font-family: 'Recursive';
//      src: url('/fonts/Recursive_VF.woff2') format('woff2');
//      font-weight: 300 1000;   /* declare the supported wght range */
//    }

export default function Hero() {
  return (
    <MagnetTypeText
      mode="word"
      axes={{ wght: [300, 800] }}   // light → bold as the cursor nears each word
      radius={150}                   // px from the cursor at which the pull begins
      falloff="quadratic"
      style={{ fontFamily: 'Recursive, sans-serif', fontSize: '2rem' }}
    >
      Type that responds to presence.
    </MagnetTypeText>
  )
}

Without a font-family resolving to a variable font, the effect is silently invisible — the markup is correct but the glyphs cannot change weight. This is the most common first-run gotcha.

Word mode vs character mode

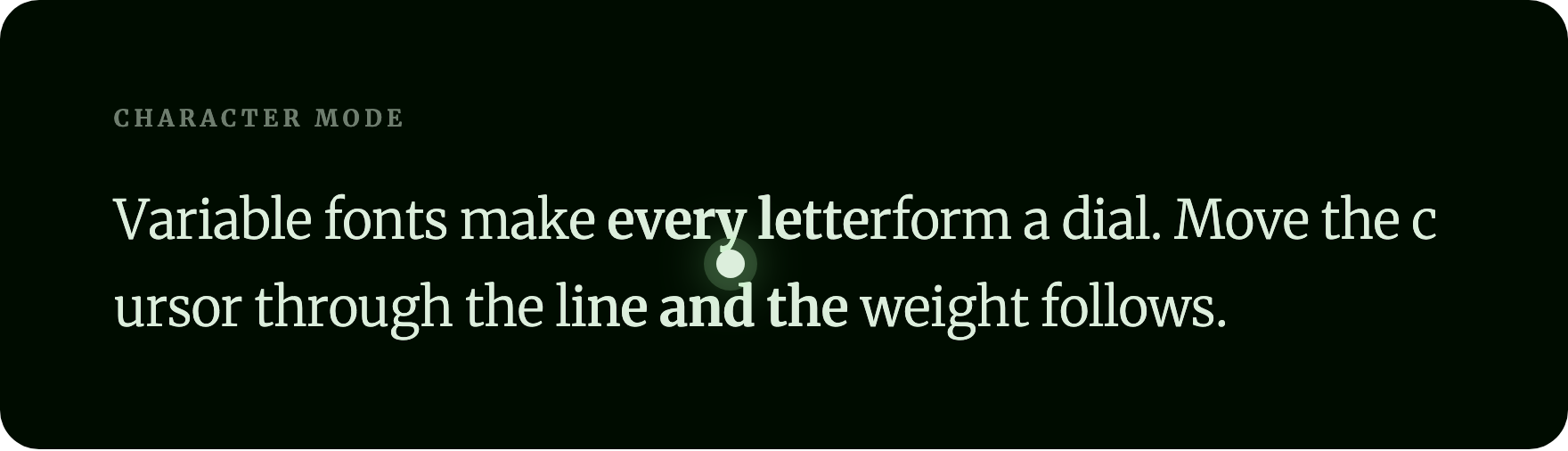

Word mode (MagnetTypeText mode="word") Character mode (MagnetChar)
Unit affected whole words individual characters
Visual word mode still character mode still
Driven by a continuous requestAnimationFrame loop passive, batched per-frame on mousemove / scroll
Mixed inline content (links, <code>) yes

Usage

React — field mode (MagnetTypeText)

Per-word cursor-proximity weight variation driven by a continuous rAF loop.

import { MagnetTypeText } from '@liiift-studio/magnettype'

<MagnetTypeText
  mode="word"
  axes={{ wght: [300, 700] }}
  radius={150}
  falloff="quadratic"
  magnetMode="attract"
>
  Your paragraph text here...
</MagnetTypeText>

React — block mode (MagnetChar)

Per-character cursor-proximity weight variation. Works with mixed content (inline elements, links, <code>, etc.) inside any block element. Characters are wrapped as React elements — no DOM mutation.

import { MagnetChar } from '@liiift-studio/magnettype'

// Per-character spread — each character responds to cursor distance
<MagnetChar
  spreadRadius={200}
  minWeight={300}
  maxWeight={700}
>
  Typography that responds to presence.
</MagnetChar>

// Whole-element gate — the effect only activates when the cursor is within proximityRadius of the element edge
<MagnetChar
  proximityRadius={120}
  minWeight={300}
  maxWeight={700}
>
  Weight rises when the cursor enters.
</MagnetChar>

// Both combined — proximity gates the spread effect
<MagnetChar
  proximityRadius={200}
  spreadRadius={120}
  minWeight={300}
  maxWeight={700}
>
  Only spreads when the cursor is close.
</MagnetChar>

MagnetChar props:

Prop Default Description
as 'p' HTML element to render — 'h1', 'div', 'span', etc.
minWeight 300 wght axis value at rest (cursor beyond any radius)
maxWeight 600 wght axis value at peak (cursor directly over the character)
spreadRadius Pixel distance from the cursor within which each character's weight rises to maxWeight. When omitted, per-character splitting is skipped
proximityRadius Pixel distance from the element edge that gates the effect. Without spreadRadius, drives a whole-element weight ramp. With spreadRadius, acts as an outer gate — the spread only fires while the cursor is within this distance
fixedAxes {} Additional axis values to hold constant in every font-variation-settings string (e.g. { opsz: 144 })
stabilizeLayout true Apply compensating letter-spacing to prevent text reflow as weight rises. Measures the element's width at rest and peak weight via an off-screen probe and applies proportional negative letter-spacing per character. Disable if you want natural bold spacing, or if your font expands glyphs very unevenly (compensation is a per-element average)
cachePositions true Cache character centre positions in page-relative coordinates, eliminating getBoundingClientRect calls on every mousemove. Rebuilt on resize and after fonts load. Disable if the element is inside a custom scroll container (overflow: scroll on a non-window element)
rafThrottle true Throttle proximity updates to one per animation frame (≈ 60 fps on most displays). Disable for lowest input latency on 120 Hz displays or very fast-moving effects
className Forwarded to the root element
style Merged with the root element's style; fontVariationSettings at minWeight is set as the base

React hook — field mode

import { useMagnetType } from '@liiift-studio/magnettype'

const ref = useMagnetType({ mode: 'word', axes: { wght: [300, 700] }, radius: 150 })
return <p ref={ref}>{children}</p>

The hook starts the cursor-proximity rAF loop on mount and tears it down cleanly on unmount. After fonts load (document.fonts.ready), the hook re-runs to ensure measurements are taken on the loaded font. When cachePositions is true (the default), a ResizeObserver is attached to rebuild the position cache on resize.

React — legibility mode

import { MagnetTypeText } from '@liiift-studio/magnettype'

<MagnetTypeText mode="legibility" wdthBoost={8}>
  Visually confusable characters like il1I and 0O are subtly widened.
</MagnetTypeText>

Vanilla JS — field mode

import { startMagnetType, removeMagnetType, getCleanHTML } from '@liiift-studio/magnettype'

const el = document.querySelector('p')
const original = getCleanHTML(el)
const opts = { mode: 'word', axes: { wght: [300, 700] }, radius: 150 }

let stop

function run() {
  if (stop) stop()
  stop = startMagnetType(el, original, opts)
}

document.fonts.ready.then(run)

// Later — cancel the loop and restore original markup:
// stop()
// removeMagnetType(el, original)

Vanilla JS — legibility mode

import { applyMagnetType, removeMagnetType, getCleanHTML } from '@liiift-studio/magnettype'

const el = document.querySelector('p')
const original = getCleanHTML(el)
const opts = { mode: 'legibility', wdthBoost: 8 }

// applyMagnetType returns a stop function and manages its own ResizeObserver internally —
// no need to wrap it in an external ResizeObserver.
let stop = applyMagnetType(el, original, opts)
document.fonts.ready.then(() => {
  stop()
  stop = applyMagnetType(el, original, opts)
})

// Later — stop the effect and restore original markup:
// stop()
// removeMagnetType(el, original)

TypeScript

import type { MagnetTypeOptions, FalloffType, MagnetModeType, MagnetCharProps } from '@liiift-studio/magnettype'

const fieldOpts: MagnetTypeOptions = {
  mode: 'word',
  axes: { wght: [300, 700], wdth: [90, 110] },
  radius: 120,
  falloff: 'quadratic' as FalloffType,
  magnetMode: 'attract' as MagnetModeType,
}

const legibilityOpts: MagnetTypeOptions = {
  mode: 'legibility',
  wdthBoost: 6,
}

Field mode options (MagnetTypeText / useMagnetType / vanilla JS)

Option Default Description
mode 'word' 'word' (alias: 'field') — cursor proximity drives per-word font-variation-settings via a continuous rAF loop. 'legibility' — cursor-driven per-character wdth boost on visually confusable characters
axes { wght: [300, 500] } (field mode) Map of axis tag → [restValue, peakValue]
radius 120 Pixel radius over which the field effect fades from each word's centre (field mode) or each character's centre (legibility mode)
falloff 'quadratic' 'linear' or 'quadratic' falloff curve
magnetMode 'attract' (field mode) 'attract' — near words approach peakValue. 'repel' — near words stay at restValue, far words approach peakValue
scope 'document' 'document' — cursor events listened on the document, enabling cross-element effects. 'element' — events restricted to the target element
props undefined Additional CSS effects driven by cursor proximity. { opacity: [rest, peak] } fades words/chars; { italic: true } toggles italic at strength > 0.5
wdthBoost 6 (legibility mode) wdth units added to confusable characters, scaled by risk: il1I (risk 3) get the full boost; r 0 O (risk 2) get ⅔; n m o b d p q c e (risk 1) get ⅓
stabilizeLayout true Apply compensating letter-spacing to keep line lengths stable as font weight changes. Disable for natural bold spacing
cachePositions true Cache word/character centre positions to avoid getBoundingClientRect on every mousemove. Disable if the element is inside a custom scroll container
transitionMs 0 Duration in ms for CSS transition back to rest when cursor leaves. 0 = instant snap. Cleared on the next mousemove so live tracking is not delayed
as 'p' HTML element to render. (React component only)

How it works

Field mode

On activation, magnetType wraps each word in an mt-word span. A mousemove listener records cursor coordinates, and a requestAnimationFrame loop runs while the cursor is inside the element. Each frame, the loop batch-reads every word span's getBoundingClientRect, computes Euclidean distance from cursor to word centre, and maps it through the falloff formula:

normalised = max(0, 1 − distance / radius)
strength   = normalised² (quadratic) or normalised (linear)

Each word's font-variation-settings interpolates between restValue and peakValue at that strength. Reads are batched before writes on every frame to avoid layout thrashing. When the cursor leaves, one final frame resets all words to restValue.

Block mode (MagnetChar)

MagnetChar splits string children into per-character <span> elements during the React render pass using useMemo — no DOM mutation. Callback refs collect each span element. On mousemove (and on scroll, using the stored last position), the component reads each span's getBoundingClientRect, computes cursor-to-character-centre distance, and sets font-variation-settings directly on the span's style. This is passive and batched per frame via the event handler.

proximityRadius measures cursor distance to the element edge (not its centre) — useful as an outer gate so the effect only fires when the cursor is actually near the block. spreadRadius measures cursor distance to each character centre — controls how wide the weight gradient spreads around the cursor within the block. Both are independent and combinable.

Legibility mode

magnetType scans text nodes recursively and checks each character against a built-in confusable character table. Confusable characters are wrapped in mt-char spans with a wdth boost proportional to risk level. Non-confusable characters pass through as plain text nodes.

No layout shift

Field mode and block mode drive only font-variation-settings on per-word or per-character spans. If you use only a wght axis, advance widths are unaffected and no reflow occurs. If you include a wdth axis, character advance widths change and lines may reflow — consider constraining axis ranges or pairing with a scaleX transform.

prefers-reduced-motion

All three modes respect prefers-reduced-motion: reduce. If the media query matches at activation time, field mode (startMagnetType) and legibility mode (applyMagnetType) return immediately — restoring the original markup without wrapping words/characters or starting the rAF loop — and block mode (MagnetChar) skips attaching its mousemove/scroll listeners, so the text renders statically at minWeight. No cursor-driven motion runs for users who have requested reduced motion.


Dev notes

next in root devDependencies

package.json at the repo root lists next as a devDependency. This is a Vercel detection workaround — not a real dependency of the npm package. Vercel's build system inspects the root package.json to detect the framework; without next present it falls back to a static build and skips the Next.js pipeline, breaking the /site subdirectory deploy.

The package itself has zero runtime dependencies. Do not remove this entry.

README visuals

The images in this README are generated by a reproducible Playwright harness in scripts/. From the repo root, with playwright and ffmpeg available:

node scripts/capture.mjs   # writes assets/hero.gif, hero.png, word.png, char.png

The harness loads the variable font and reproduces the package's falloff math at frozen cursor positions, then assembles the sweep into a GIF. The assets/ directory is not part of the published package (files ships dist only), so these images add nothing to the install size.


Future improvements

  • Custom confusable table — allow callers to pass their own Record<string, number> to override or extend the built-in character risk map
  • Axis clamping — optional per-axis min/max clamp to prevent values from exceeding a font's supported range
  • SSR hydration — pre-render legibility mode markup on the server so boosted characters are present from first paint

See the npm badge at the top of this file for the current published version.
