Usage

leaflet-x is quite flexible and was developed thinking about most of the needs that may arise when working with maps. Here are some of the inputs and modules:

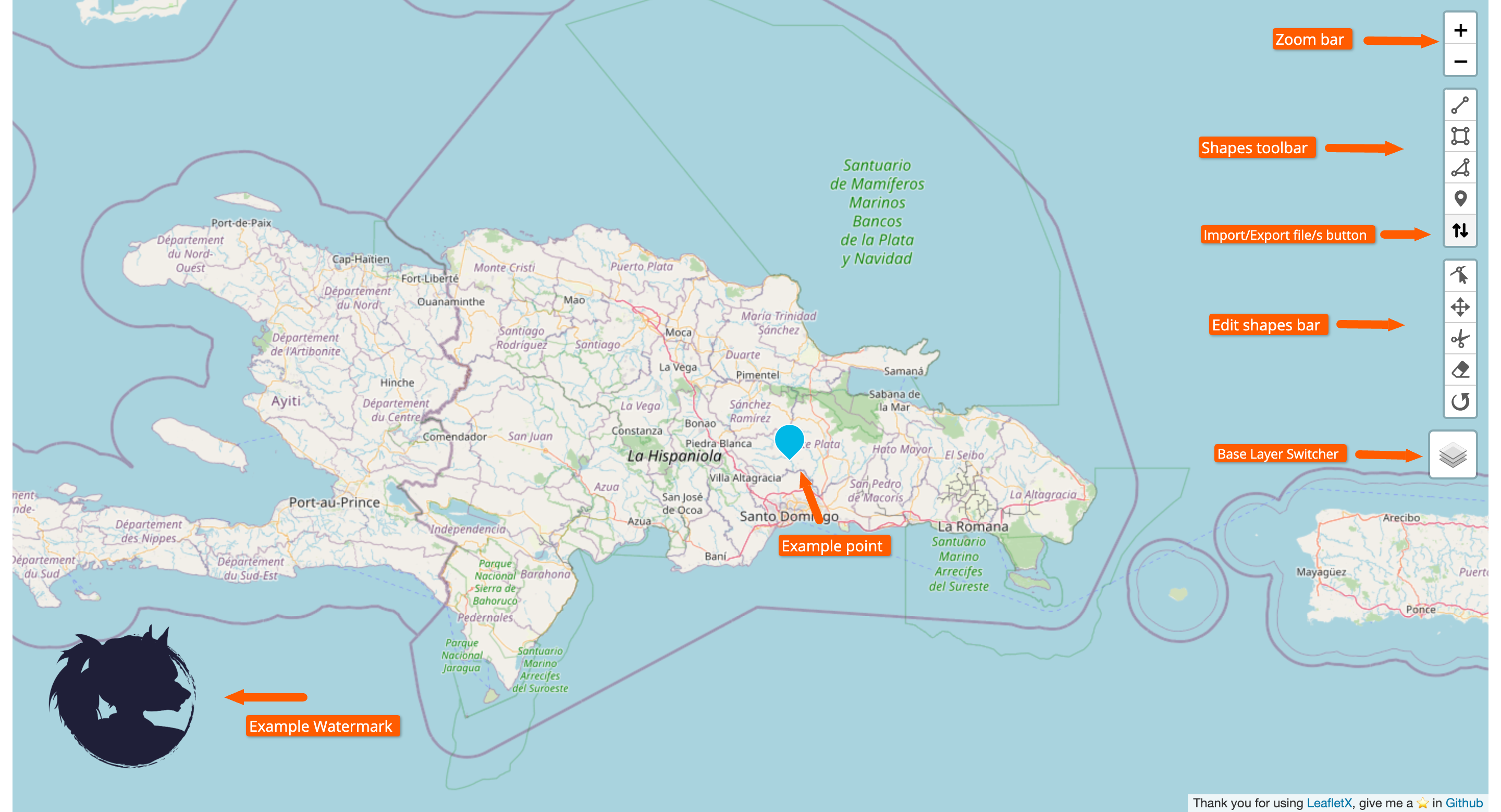

Map elements

Inputs / Outputs

Decorator	Name	Type	Description
@Input	defaultInitMapCoords	L.LatLngExpression	Default render map coordinate
@Input	defaultZoomLevel	Number	Set the default zoom to see in the rendered map
@Input	featureCollectionInput	GeoJsonResult	This @Input receives an object of type GeoJsonResult, which is nothing more than the structure of a FeatureCollection or a GeoJson, you could say that it is the same structure of a drawing object that is already exported in GeoJson format. You can see such an object if you draw a figure and export it with the export file module and export a GeoJson of the drawing.
@Input	prefix	String	This will write a footer on the map, it is often used to put @copyright messages.
@Input	watermarkImagePath	String	This @Input receives a path (preferably from the assets folder) in which you can call an image you have in that folder, to draw the image on the map (preferably an image with transparency).
@Input	readonly	Boolean	Enable or disable the toolbar utility to draw or not.
@Input	mainColor	#{string}	Set this input if you want to set a shape color. Blue shape color is default, but you can set a custom color, eg: #ffcc66
@Output	featureCollectionOutput	GeoJsonResult	This is part of I/O mainstream, emits every action made in the map

Example

<leaflet-x prefix="@Copyright give me a star in GH" watermarkImagePath="assets/exampleImage.png" mainColor="#00ff00" (featureCollectionOutput)="watchFeatureCollectionOutput($event)"></leaflet-x>

Modules

Import Files module

Export Files module
