Google Cloud Rapid Agent Hackathon — GitLab Track — June 2026

Transform any GitLab repository into a navigable 3D semantic terrain. Files float as cards positioned by Google AI similarity. A Gemini 2.0 Flash agent analyzes the codebase and creates real GitLab issues via a self-hosted MCP server — all navigable with bare hands.

---

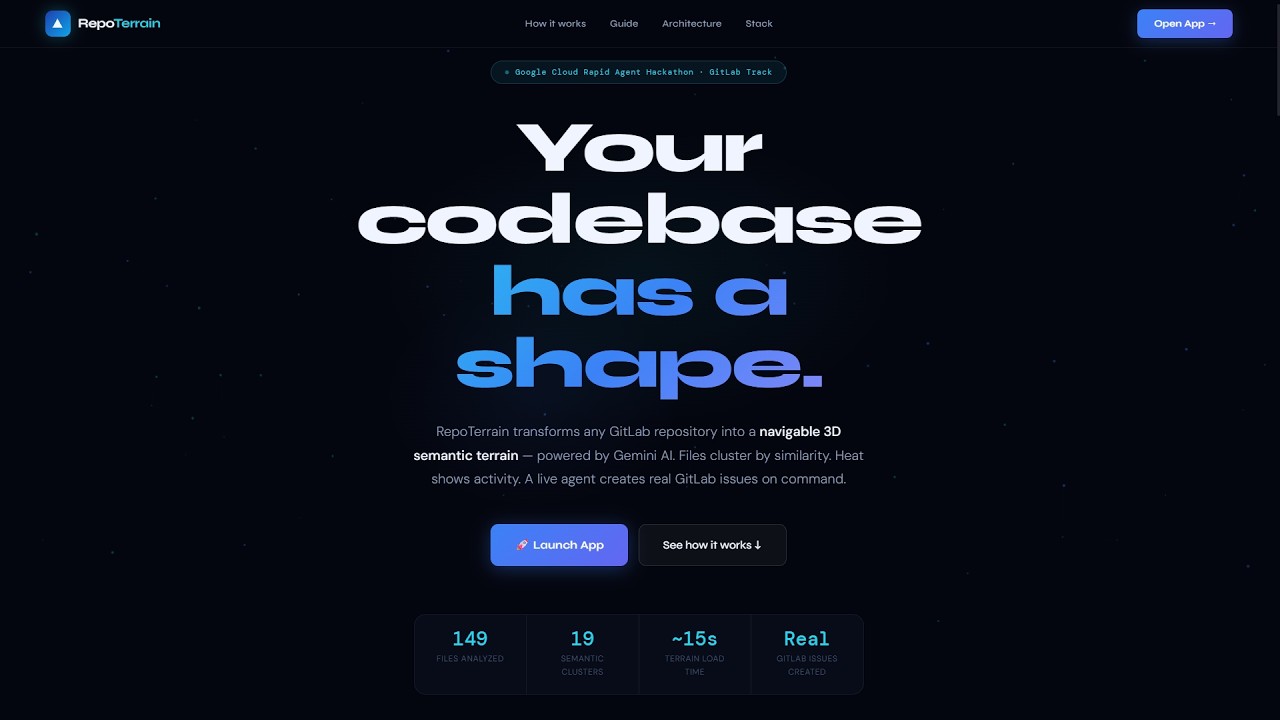

Demo Video

▶️ Watch the 4-minute demo on YouTube

---

The Problem

Every developer has stared at a repo they've never seen before and had no idea where to start. File trees tell you nothing about relationships, activity, or importance — onboarding takes days, and tech debt hides invisibly in cold corners of the project.

What It Does

Paste any public GitLab repository URL. In ~15 seconds:

• Up to 150 files fetched via GitLab REST API v4, embedded with Google AI text-embedding-004, projected into 3D space via UMAP
• Semantic clusters emerge — files grouped by directory proximity, not just raw folder structure
• Activity heat map scores each file 0–1 from filename role, size, and tree depth — a proxy for activity since GitLab API doesn't expose commit frequency without authentication. Red = core/active, blue = legacy/docs
• Gemini 2.0 Flash agent answers questions with real file content and live terrain stats as context; falls back to Groq LLaMA 3.1 if quota exceeded
• GitLab MCP actions create real issues, list open MRs, and fetch pipeline status — via a self-hosted zereight/gitlab-mcp gateway (Streamable HTTP, MCP-Protocol-Version 2025-03-26), with REST API v4 as transparent fallback
• MediaPipe hand tracking — open palm to fly, pinch to zoom, point to select files, fist to rotate

Tested on gitlab-org/gitlab-runner → 149 files · multiple semantic clusters · ~15s end-to-end

---

Screenshots

Landing page — paste any GitLab repo URL	3D terrain + Gemini agent — real issue created live
Activity heat map — hot files, clusters, cold zones	Hand tracking — navigate with gestures, no mouse

Live GitLab issue — created by the agent on ashish-doing/repoterrain-demo, not simulated

---

Agent in Action

Query	What Happens
"What's the most complex module?"	Gemini reads terrain stats + real file content → structured analysis citing actual filenames
"Create an issue for cold zones"	Real GitLab issue created on ashish-doing/repoterrain-demo via MCP gateway (REST fallback if unavailable) — clickable URL returned in chat
"Explain the CI cluster"	Reads actual files in the selected cluster, explains relationships
"List open MRs"	Fetches live merge requests via GitLab REST API
"Get pipeline status"	Fetches recent pipeline runs and status

Agent response format is fixed (module name → why → key files → heat → action) — every answer is grounded in the actual terrain, no invented file paths.

---

How It Works

flowchart LR
    A["INPUT\nGitLab Repo URL\nPOST /ingest"] --> B["1 · Fetch\nGitLab REST API v4\nup to 150 files"]
    B --> C["2 · Embed\ntext-embedding-004\n768-dim per file\n(TF-IDF fallback)"]
    C --> D["3 · Project\nUMAP cosine\nn_components=3"]
    D --> E["4 · Render\nThree.js CSS3D\nheat colors + clusters"]
    E --> F["5 · Agent\nGemini 2.0 Flash\nQ&A + MCP actions"]

Loading

See ARCHITECTURE.md for full system diagrams, sequence flows, and component breakdown.

---

Tech Stack

Layer	Technology	Purpose
AI Embeddings	Google AI text-embedding-004	768-dim semantic file vectors
AI Agent	Gemini 2.0 Flash	Codebase Q&A + action reasoning
Fallback LLM	Groq llama-3.1-8b-instant	Agent fallback when Gemini quota exceeded
Fallback Embed	TF-IDF (scikit-learn, 384 features)	Embedding fallback — ~2.8s vs ~15s Gemini
Dim Reduction	UMAP (cosine, 3 components)	High-dim vectors → normalized 3D coordinates
3D Engine	Three.js r128 + CSS3DRenderer	Floating file cards in semantic space
Hand Tracking	MediaPipe Tasks Vision	Gesture-based terrain navigation
GitLab MCP	Self-hosted zereight/gitlab-mcp (Streamable HTTP, MCP-Protocol-Version 2025-03-26) + REST v4 fallback	Issue creation, MR listing, pipeline status
Backend	FastAPI + uvicorn + WebSockets	Ingest pipeline, agent API, real-time updates
Deployment	Railway (2 services)	Main backend + MCP gateway

---

Hackathon Compliance

Requirement	Status
Google Cloud AI — Agent	✅ Gemini 2.0 Flash via generativelanguage.googleapis.com
Google Cloud AI — Embeddings	✅ text-embedding-004 — 768-dim semantic file positioning
GitLab MCP actions	✅ Self-hosted zereight/gitlab-mcp (JSON-RPC 2.0 tools/call, MCP-Protocol-Version 2025-03-26, Streamable HTTP). The official gitlab.com/api/v4/mcp requires Premium/Ultimate + Duo — unavailable on free tier. Community server = same protocol, works on any GitLab tier. REST v4 fallback if gateway unreachable
Agent takes real actions	✅ Creates real GitLab issues, not simulated responses
New project	✅ First commit May 23, 2026 (hackathon opened May 5, 2026)
Public repo + live demo	✅ MIT license, deployed on Railway

---

GitLab MCP Gateway

The official gitlab.com/api/v4/mcp server requires GitLab Premium/Ultimate with Duo — not available on free-tier GitLab where ashish-doing/repoterrain-demo lives.

RepoTerrain self-hosts zereight/gitlab-mcp (1.5k★, 154 tools, MIT) as a second Railway service in Streamable HTTP + Remote Authorization mode — genuine MCP over JSON-RPC 2.0, not a REST shim:

• agent.py sends tools/call to GITLAB_MCP_GATEWAY_URL with Private-Token header + MCP-Protocol-Version: 2025-03-26
• Gateway calls create_issue, list_merge_requests, list_pipelines against gitlab.com/api/v4
• If gateway is unreachable or GITLAB_MCP_GATEWAY_URL is unset → transparent fallback to direct REST API v4. Response via field is always honest: "gitlab-mcp-gateway" or "gitlab-rest-api"

See mcp-gateway/README.md for deployment steps.

---

Local Setup

git clone https://github.com/ashish-doing/repoterrain
cd repoterrain/backend
pip install -r requirements.txt
cp .env.example .env
# Fill in your keys in .env

uvicorn main:app --reload --port 8000
# Landing page: http://localhost:8000/
# App:          http://localhost:8000/app

Environment Variables

Variable	Purpose	Effect if Missing
GEMINI_API_KEY	Gemini 2.0 Flash agent + text-embedding-004	Falls back to TF-IDF + Groq agent
GROQ_API_KEY	LLaMA 3.1 8B fallback	Agent falls back to demo-mode responses
GITLAB_TOKEN	Issue creation, MR/pipeline fetch, private repos	GitLab actions disabled; public repos still work
GITLAB_MCP_GATEWAY_URL	Self-hosted MCP server endpoint	Falls back to direct REST API v4

---

Running Tests

cd repoterrain/backend
pytest tests/ -v

Covers parse_gitlab_url, should_skip, estimate_heat, detect_language, compute_edges, compute_clusters — all pure functions, no network calls.

---

Project Structure

repoterrain/
├── backend/
│   ├── main.py            FastAPI — /, /app, /health, /ingest, /agent/query, /ws/{id}, /terrain/{id}
│   ├── pipeline.py        GitLab fetch → embed → UMAP → cluster/heat → terrain JSON
│   ├── agent.py           Gemini 2.0 Flash + Groq fallback + GitLab MCP gateway
│   ├── tests/             pytest unit tests (21 tests, pipeline.py pure functions)
│   ├── index.html         Frontend — Three.js + MediaPipe + agent panel
│   ├── landing.html       Product landing page (served at /)
│   ├── .env.example       Environment variable template
│   └── requirements.txt
├── mcp-gateway/
│   ├── Dockerfile         zereight/gitlab-mcp, Streamable HTTP + Remote Auth
│   ├── railway.toml       Railway service config
│   └── README.md          Why this exists + deployment steps
├── docs/
│   └── index.html         GitHub Pages landing page mirror
├── screenshots/
├── ARCHITECTURE.md        Full system diagrams + sequence flows
├── CONTRIBUTING.md
└── README.md

---

Author

Ashish Kumar — B.Tech ECE, IIIT Guwahati (Batch 2024)

---

License

MIT — see LICENSE for details.

---

Built for the Google Cloud Rapid Agent Hackathon — GitLab Track — June 2026

Powered by Gemini 2.0 Flash · Google AI Embeddings · Self-Hosted GitLab MCP · Three.js · MediaPipe

Every codebase has a shape. Now you can see it.
