Folded Plate Structures

An example workflow for defining and optimizing a spanning folded plate structure.

• Original project page
• Demo videos (slightly outdated)

Required Grasshopper plug-ins

• Karamba (analysis)
• Design Space Exploration (optimization)

Instructions

Download .gh file. Blue groups indicate action steps. Follow in sequence.

1. Define base curves

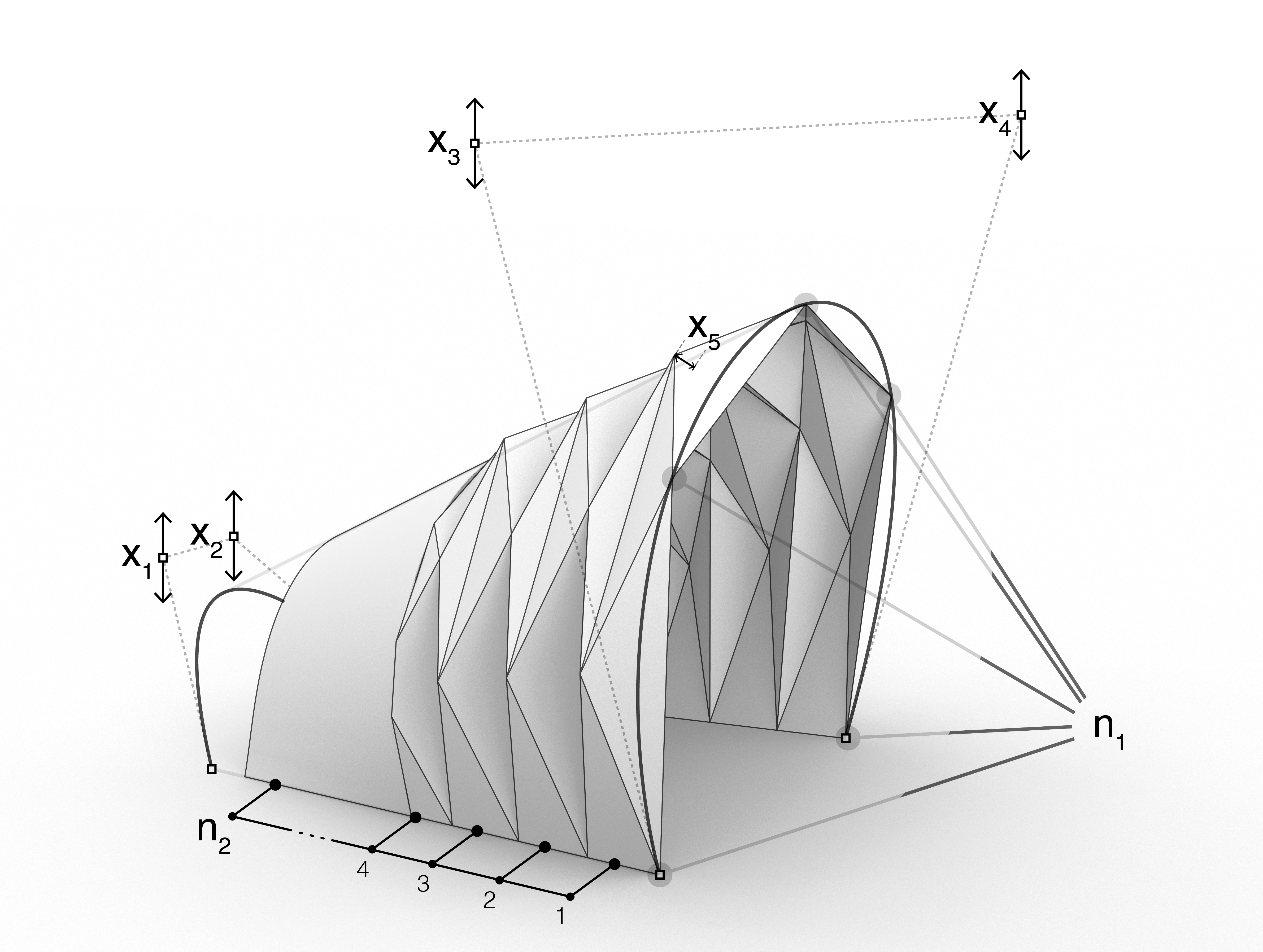

2. Adjust folded plate parameters
3. Optimization (Karamba required)
