Unity Roulette Prototype

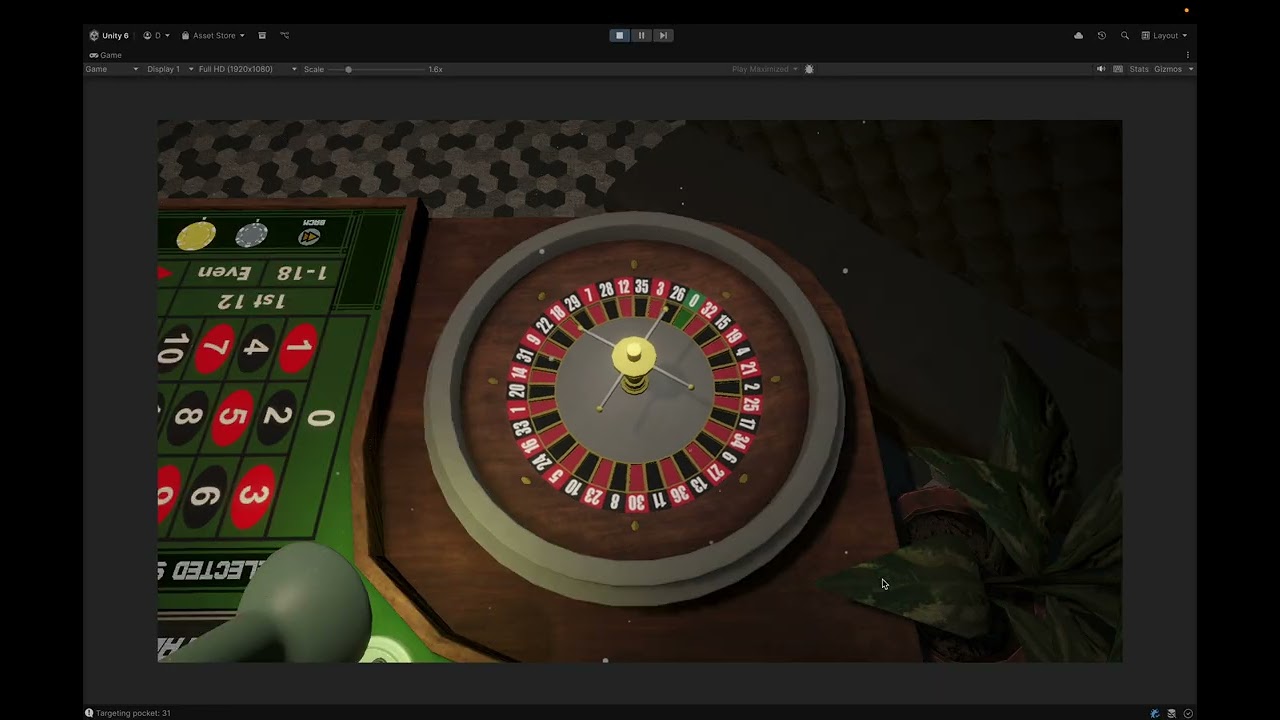

Gameplay Demo

Controls and Gameplay Instructions

Placing Bets

1. Select a Chip: Click on one of the chip denominations at the bottom of the screen. The selected chip will be highlighted.
2. Place Chip on Table: Click on any of the designated betting spots on the roulette table. This includes individual numbers, dozens, columns, red/black, etc.
3. Stacking Chips: You can click multiple times on the same spot to stack chips and increase the bet amount.
4. Player Balance: Your current balance is displayed in the bottom-right corner and will update automatically as you place bets.

Spinning the Wheel

• Once you are satisfied with your bets, press the "Spin" button on the right to start the roulette wheel.
• Once the spin is initiated, no more bets can be placed.

Deterministic Mode (For Testing)

The prototype includes a special mode for testing specific outcomes.

1. Enable Deterministic Mode: Check the "Deterministic" toggle at the top of the screen.
2. Select Outcome: An input field will become active. Enter the number (0-36) you want the ball to land on.
3. Spin: Press the "Spin" button. The ball will now land on the number you selected.

Design Patterns Utilized

This project leverages several common design patterns to create a structured, scalable, and maintainable codebase.

1. Service Locator

• Description: The Service Locator pattern provides a central registry for services (dependencies), allowing different parts of the application to get references to services without needing a direct link.
• Implementation: The DI/ServiceLocator.cs class is a static class that holds a dictionary of service interfaces and their concrete implementations. The GameInitializer.cs script is responsible for creating instances of all services (e.g., BettingManager, AudioManager) and registering them with the ServiceLocator at the start of the game. Other classes then call ServiceLocator.Get<IMyService>() to retrieve dependencies.

2. Observer

• Description: The Observer pattern allows objects to subscribe to and receive notifications about events happening in other objects, without the objects having to be tightly coupled.
• Implementation: C# event and Action delegates are used extensively. For example:
  • IBettingManager.OnBetsCleared: UI elements subscribe to this event to know when to clear chip visuals from the board.
  • IWheelController.OnSpinComplete: The GameManager subscribes to this to know when the wheel has finished spinning, triggering the payout sequence.
  • IStatisticService.SpinRecorded: The StatisticsUI subscribes to this to update the displayed stats after each spin.

3. Object Pool

• Description: This pattern is used to reuse objects that are expensive to create, such as GameObjects. Instead of destroying objects, they are returned to a "pool" to be reused later.
• Implementation: The generic PoolService<T> class implements the core pooling logic. The ChipManager uses this service to manage pools for each type of chip visual. When a chip is placed, it's taken from the pool (Get()), and when bets are cleared, the chip visuals are returned to the pool (Return()) instead of being destroyed.

4. State (Implicit)

• Description: The State pattern allows an object to alter its behavior when its internal state changes.
• Implementation: The GameManager uses a GameState enum (Betting, Spinning, Payout). While not a formal implementation with separate classes for each state, the ChangeState method and the logic within GameManager that checks _currentState effectively mimic this pattern. For example, the SpinButtonPressed() method only works if the state is GameState.Betting.

5. Strategy (Implicit)

• Description: The Strategy pattern defines a family of algorithms, encapsulates each one, and makes them interchangeable.
• Implementation: The static BetRules class acts as a provider for different betting strategies or rules. The GetPayout(BetType) and GetBetNumbers(BetType) methods return different values or number sets based on the BetType enum provided. This decouples the payout and win-checking logic from the objects that need this information.

6. Data Container (ScriptableObject)

• Description: A common Unity-specific pattern where ScriptableObjects are used to create data assets that exist outside of scenes, making it easy to manage and edit configuration data.
• Implementation:
  • ChipDatabaseSO: Holds a list of all available chip types, their values, sprites, and prefabs.
  • SoundDatabaseSO: Contains a list of all audio clips, mapping them by a string key for easy access by the AudioManager.

Known Issues & Future Improvements

Architectural Refinements

• Service Locator vs. Dependency Injection: The current Service Locator pattern, while effective, can hide dependencies and make unit testing more difficult. A future improvement would be to replace it with a true Dependency Injection framework like VContainer or Zenject, which makes dependencies explicit.
• async void Methods: Some methods (e.g., in GameManager, WheelController) use async void. This should generally be avoided in favor of async Task to improve error handling and task composition. async void should primarily be reserved for top-level event handlers.
• Complex Logic in BettingManager.RestoreState: The logic for restoring chip visuals on the board is complex and involves nested loops. This could be refactored for better performance and readability, perhaps by using a dictionary to map bet types and numbers to their corresponding UI spots.

Future Features

• Back-Revert Button: Add a button to allow players to revert their last bet action. I have plan to implement via command pattern.
• Expanded Bet Types: Implement more complex roulette bets like double zero (American Roulette). I will have plan to add this but finding competible assets is a challenge.
• UI/UX Polish: Add more animations, visual feedback, and refined graphics.
• Refactor GameManager: The GameManager currently has many responsibilities. It could be broken down further, with game state logic potentially being handled by a hierarchical Finite State Machine.
