ElevenLabs Voice Widget

Embeddable voice chat widget powered by ElevenLabs conversational AI and Mascotbot SDK. Deploy once, embed anywhere with a single script tag.

How It Works

1. Deploy this repo with your ElevenLabs credentials
2. Embed on any website with one script tag
3. Users click the widget button to start a voice conversation

Important: SDK Not Included

The Mascotbot SDK package is NOT included in this repository. You must add it separately after cloning:

1. Obtain mascotbot-sdk-react-X.X.X.tgz from your Mascotbot subscription
2. Copy the .tgz file to the project root
3. Run pnpm install

This is required before building or deploying.

Quick Start

1. Deploy

After cloning your deployed repo:

1. Add the Mascotbot SDK package (mascotbot-sdk-react-X.X.X.tgz) to your repo root
2. Add your mascot widget .riv file to the public folder
3. Run pnpm install
4. Commit and push to trigger a rebuild

2. Embed

Add this script tag to any website:

<script src="https://your-deployed-widget.vercel.app/widget-embed.js"></script>

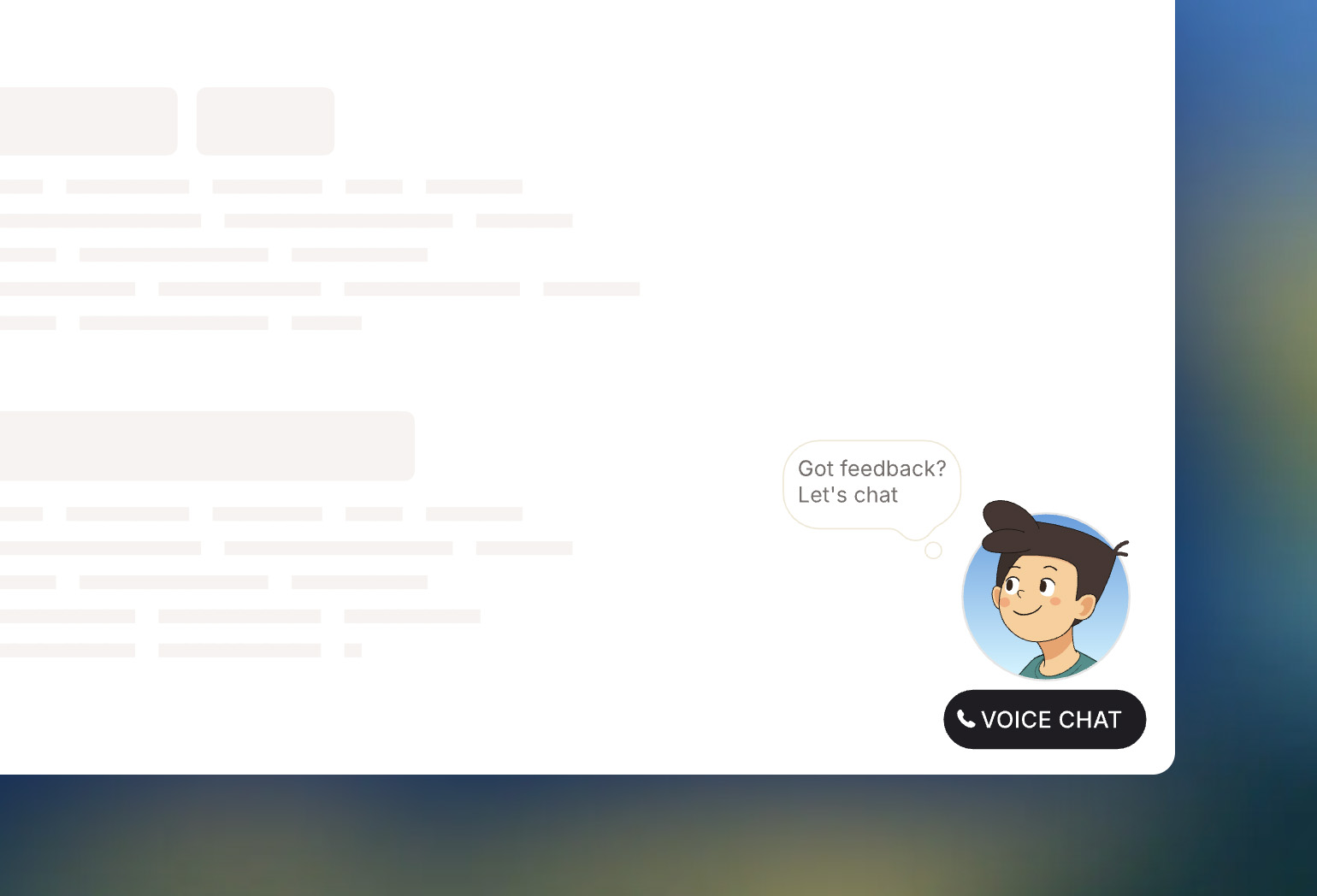

That's it! The widget appears in the bottom-right corner with click-through behavior - your page remains fully interactive.

Embed Options

Custom Sizes

<script
  src="https://your-widget.vercel.app/widget-embed.js"
  data-widget-width="400"
  data-widget-height="500">
</script>

Responsive (Mobile + Desktop)

<script
  src="https://your-widget.vercel.app/widget-embed.js"
  data-widget-width="350"
  data-widget-height="450"
  data-widget-mobile-width="280"
  data-widget-mobile-height="350"
  data-widget-mobile-breakpoint="768">
</script>

All Options

Attribute	Default	Description
data-widget-url	Auto-detected	Override the widget URL
data-widget-width	350	Desktop width in pixels
data-widget-height	450	Desktop height in pixels
data-widget-mobile-width	Same as desktop	Mobile width in pixels
data-widget-mobile-height	Same as desktop	Mobile height in pixels
data-widget-mobile-breakpoint	768	Viewport width to switch to mobile

Character Customization

Customize the mascot appearance in src/app/page.tsx:

const WIDGET_CUSTOMIZATION = {
  gender: 1,              // 1 = male, 2 = female
  outline: 10,            // 0-100 stroke thickness
  colourful: true,        // true = colorful, false = monochrome
  flip: false,            // Mirror the character
  crop: false,            // Show background circle
  bg_color: 0,            // 0-10 background color (when crop=true)
  shirt_color: 2,         // 1-6 shirt color variant
  eyes_type: 2,           // 1-2 eye style
  hair_style: 1,          // 1-3 hair style
  accessories_hue: 0,     // 0-360 accessory color hue
  accessories_saturation: 0,
  accessories_brightness: 0,
};

Manual Setup

Prerequisites

• Node.js 18+
• Mascotbot SDK (.tgz file from subscription)
• Mascot Widget .riv file
• ElevenLabs API key and Agent ID

Installation

# Clone
git clone https://github.com/mascotbot/elevenlabs-widget.git
cd elevenlabs-widget

# Add SDK
cp /path/to/mascotbot-sdk-react-0.1.7.tgz ./

# Add mascot file
cp /path/to/mascot-widget.riv ./public/

# Install
pnpm install

# Configure
cp .env.example .env.local

Edit .env.local:

MASCOT_BOT_API_KEY=mascot_xxxxxxxxxxxxxx
ELEVENLABS_API_KEY=sk_xxxxxxxxxxxxxx
ELEVENLABS_AGENT_ID=agent_xxxxxxxxxxxxxx

Run:

pnpm dev

How the Embed Works

The widget uses a click-through iframe pattern:

• Default state: Widget is visible but clicks pass through to your page
• Button hover: Only the voice chat button area is interactive
• Active call: Full widget becomes interactive during conversations

This means buttons, links, and other elements on your page work normally - even if they're visually "under" the widget.

Rive File Requirements

Your widget .riv file needs:

Artboard: Widget

Inputs:

• is_speaking - Boolean for lip sync
• is_connected - Boolean for connection state
• is_connecting - Boolean for connecting state
• reveal - Trigger for initial animation
• hit - Trigger for call-ended animation
• gesture - Trigger for reactions

Events (emitted by Rive):

• startCall - User clicks start button
• endCall - User clicks end button

Troubleshooting

Build fails with "frozen-lockfile" error?

• Delete pnpm-lock.yaml and node_modules
• Re-run pnpm install to regenerate the lockfile
• Commit the new lockfile

Widget not appearing?

• Check browser console for errors
• Verify .riv file is in /public
• Ensure artboard is set to Widget

Clicks not working?

• Verify Rive file emits startCall/endCall events
• Check shouldDisableRiveListeners={false} is set

Connection failed?

• Verify API keys in .env.local
• Check ElevenLabs agent is active
• Grant microphone permissions

Links

• Mascotbot Documentation
• ElevenLabs Integration Guide
• Support

---

Built with Mascotbot SDK
